Measuring in machine vision is used to confirm the dimensional accuracy of components, parts and sub-assemblies automatically, without the need for manual intervention. Typical applications for gauging vision systems include

Application:

• Measuring maximum/minimum dimensions of components, parts or products

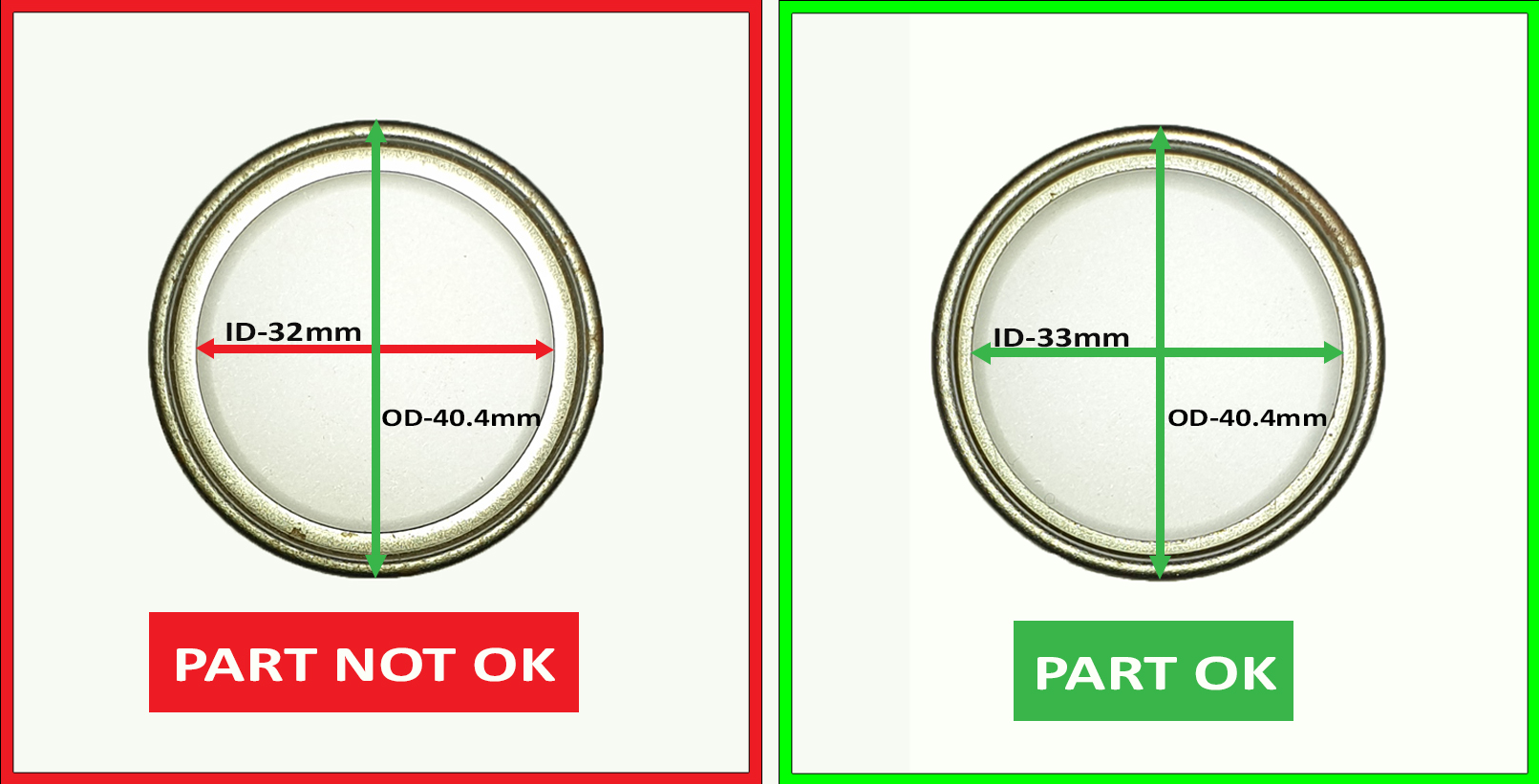

• Measuring inner or outer diameters or centre coordinates of circular products


• Measuring the roundness or angle of metal parts


• Dimensional inspection of medical device components and pharmaceutical products


• Measuring label positions, seals and packaging dimensions


• Measuring widths of sheet/film products


• Gauging components on printed circuit boards


• Checking component and sub-assembly positions.


• Measuring three dimension of object (Thickness, height, depth, volume).
